Precision Plastic Mold Making
The mold is the mother of the part. We build high-quality molds for over a million cycles, especially for medical and electronics. Using mold flow analysis, conformal cooling, and premium steels, we ensure stable, efficient production of perfect parts.
Why LEDA for Plastic Mold Making?
√Built for High-Precision Products – We focus on manufacturing ultra-high-precision, long-life injection molds required by the medical, optical, and electronics industries.
√Combination of Science and Experience – We use mold flow analysis to guide design and employ techniques like hardened steels and conformal cooling to enhance mold performance and production efficiency.
√Ensures Production Stability – A superior mold is the foundation of consistent quality. The molds we deliver are a reliable guarantee for your mass production success.
Core Capabilities

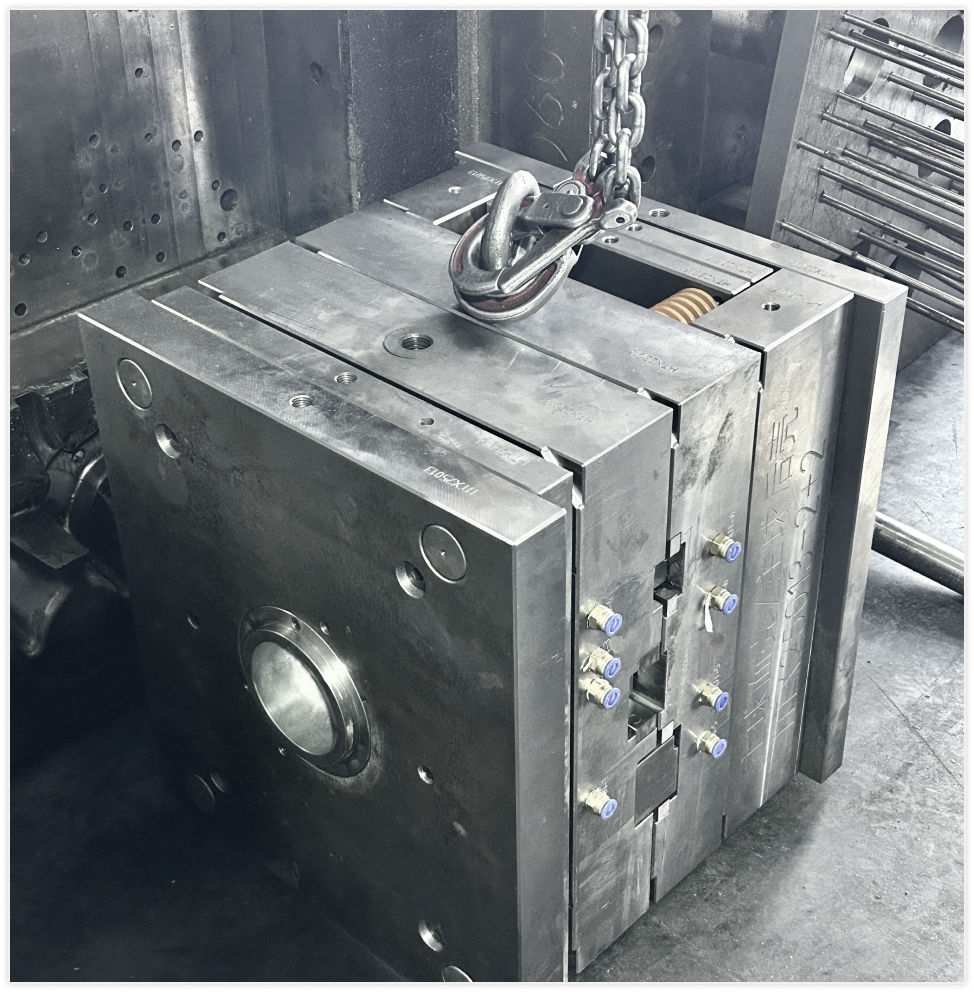

High-Cavity, Long-Life Mold Design & Build
Specializes in molds with over 1 million shot life, using high-hardness, high-polishability steels.
Mold Flow Analysis & Thermal Management
Employs CAE software for filling, cooling, and warpage analysis, and uses conformal cooling for optimized cycle time and quality.

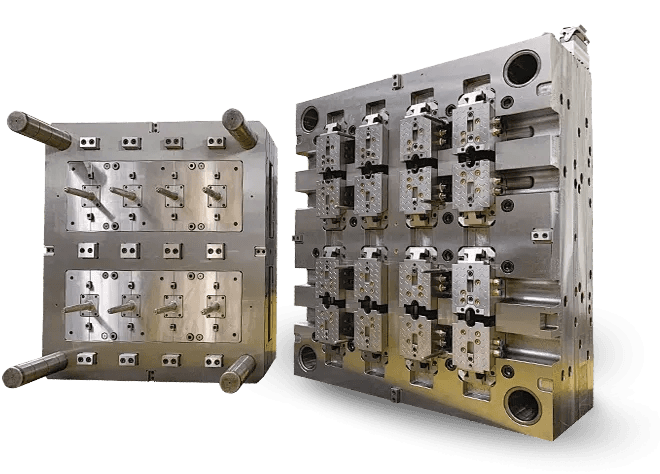

Multi-Cavity & Stack Mold Technology
Designs and builds high-cavity-count molds or stack molds to maximize output per shot and minimize unit cost.
Micro-Features & High-Gloss Surface Machining
Capable of machining micro-gears, micro-channels, lens arrays, and achieving SPI A1 mirror finishes.
General Tolerances for Orientation & Form Features (Metals)
| Part Feature Length (in) | 0 to 12″ | 12″ to 24″ | 24″ to 36″ | 36″ to 60″ | > 60″ |
|---|---|---|---|---|---|
| Orientation & Form Tolerance (in) | 0.004″ | 0.008″ | 0.016″ | 0.031″ | 0.063″ |
| Angularity Tolerance | 0.5° | 0.5° | 1.0° | 1.0° | 1.0° |
| Angularity Tolerance | 0.5° | 0.5° | 1.0° | 1.0° | 1.0° |
| Angularity Tolerance | 0.5° | 0.5° | 1.0° | 1.0° | 1.0° |
Quality Standards/Material Selection
Let's Build Something Great, Together

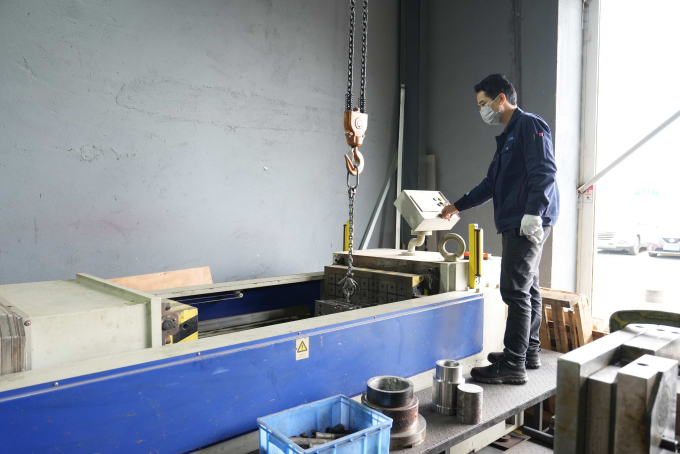

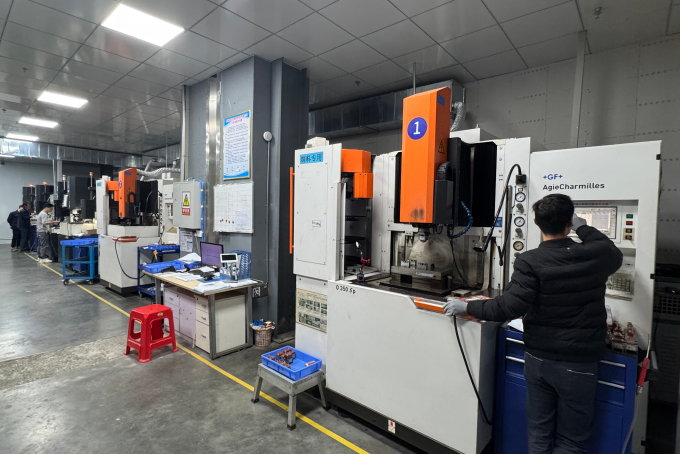

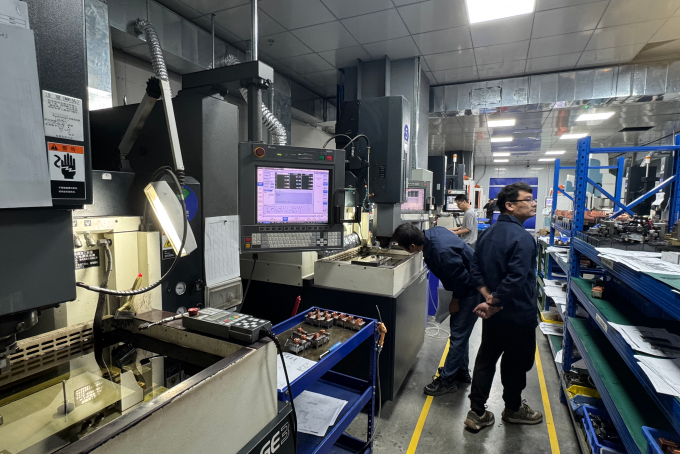

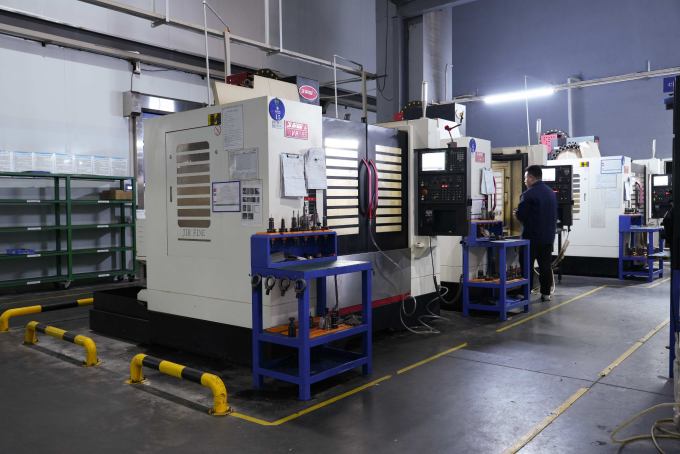

Processing Site
