Precision Die Casting Die Making
Die casting dies work in extreme conditions. We design and build durable dies that withstand high pressure and temperature. Using premium hot-work steel and surface treatments, we are your foundation for quality, efficient die casting.
Why LEDA for Die Casting Die Making?
√Engineered for Extreme Environments – Using premium hot-work tool steels and applying specialized surface treatments to ensure the die resists thermal fatigue and erosion for a long service life.
√Built with Deep Process Understanding – Our mold design fully considers filling, venting, and cooling, ensuring die casting part quality and production efficiency from the source.
√Large & Complex Die Manufacturing Capability – We possess the experience and equipment to design and manufacture large, complex die casting dies.
Core Capabilities
Large-Die Manufacturing for Thermal Fatigue Resistance
Specializes in large, complex dies using premium hot-work steels (e.g., H13) with heat treatment and surface treatment for longevity.
Complex Slide & Core Mechanism Design
Experts in designing sliders, lifters, and hydraulic cores to form castings with undercuts and side features.
Gating, Overflow & Thermal Balance Design
Optimizes gating, overflows, vents, and cooling based on simulation for smooth filling, reduced air entrapment, and minimized porosity.
Die Monitoring & Maintenance Service
Offers monitoring guidance and preventative maintenance to extend die life and ensure stable production.
General Tolerances for Orientation & Form Features (Metals)
| Part Feature Length (in) | 0 to 12″ | 12″ to 24″ | 24″ to 36″ | 36″ to 60″ | > 60″ |
|---|---|---|---|---|---|
| Orientation & Form Tolerance (in) | 0.004″ | 0.008″ | 0.016″ | 0.031″ | 0.063″ |
| Angularity Tolerance | 0.5° | 0.5° | 1.0° | 1.0° | 1.0° |
| Angularity Tolerance | 0.5° | 0.5° | 1.0° | 1.0° | 1.0° |
| Angularity Tolerance | 0.5° | 0.5° | 1.0° | 1.0° | 1.0° |
Quality Standards/Material Selection
Let's Build Something Great, Together

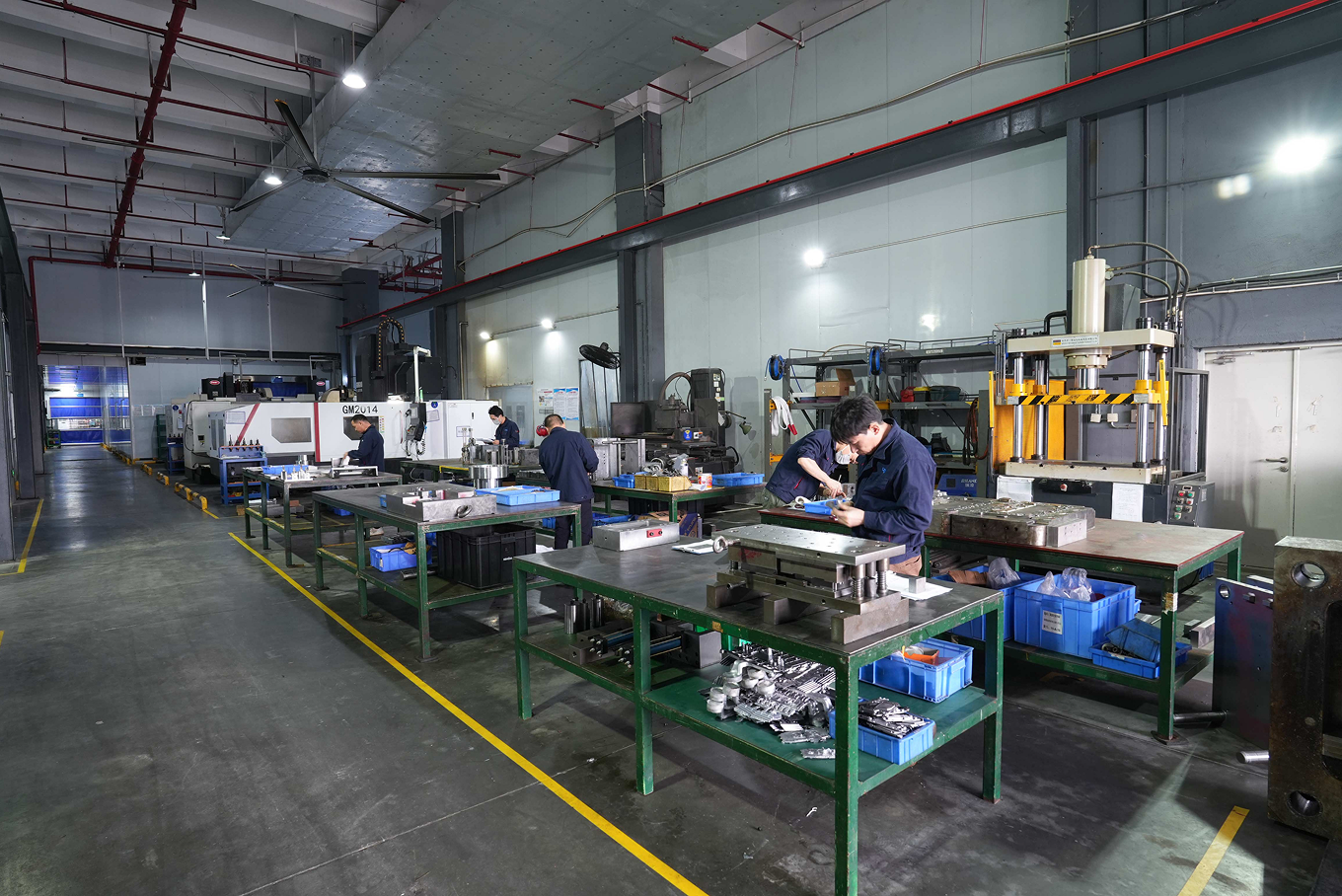

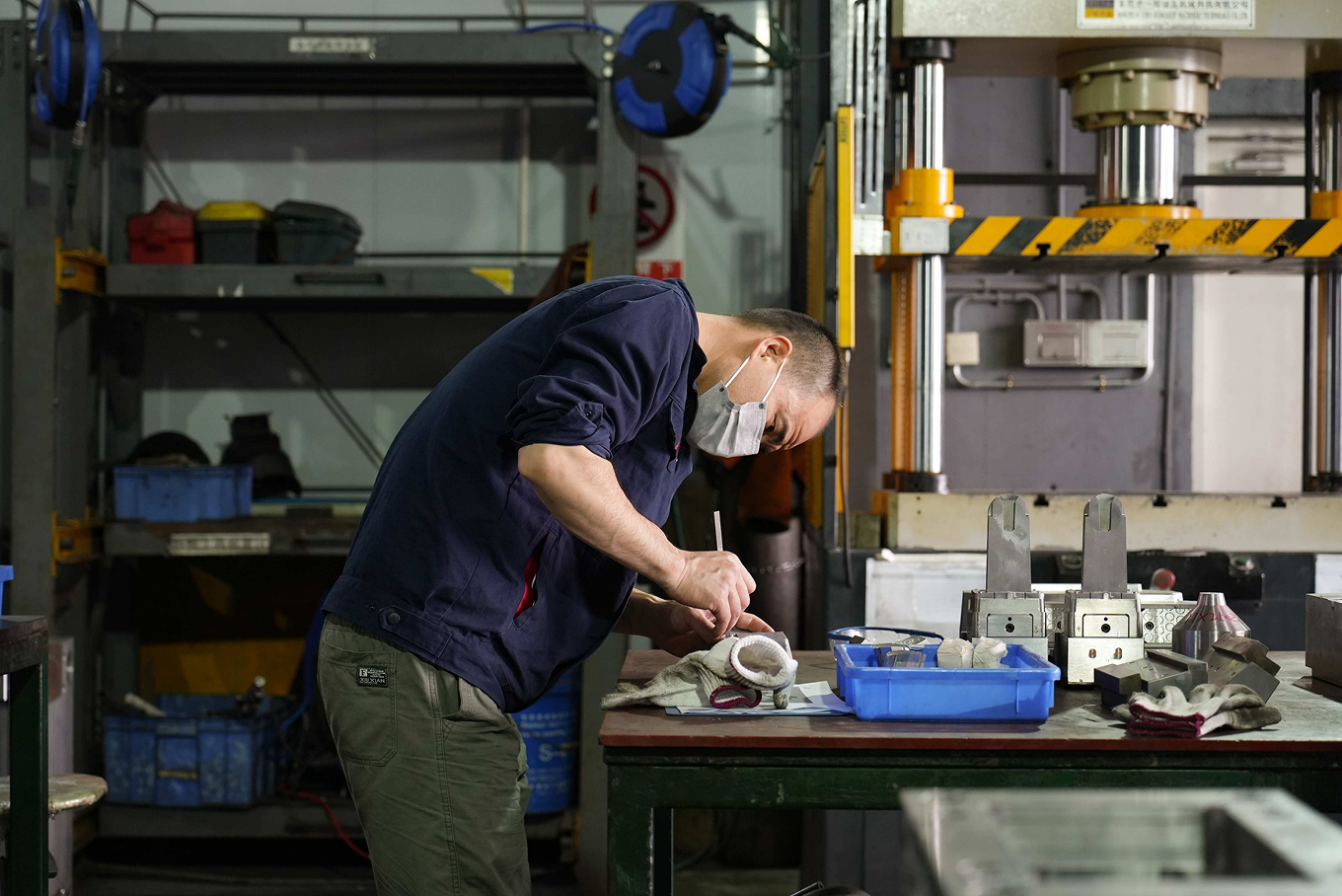

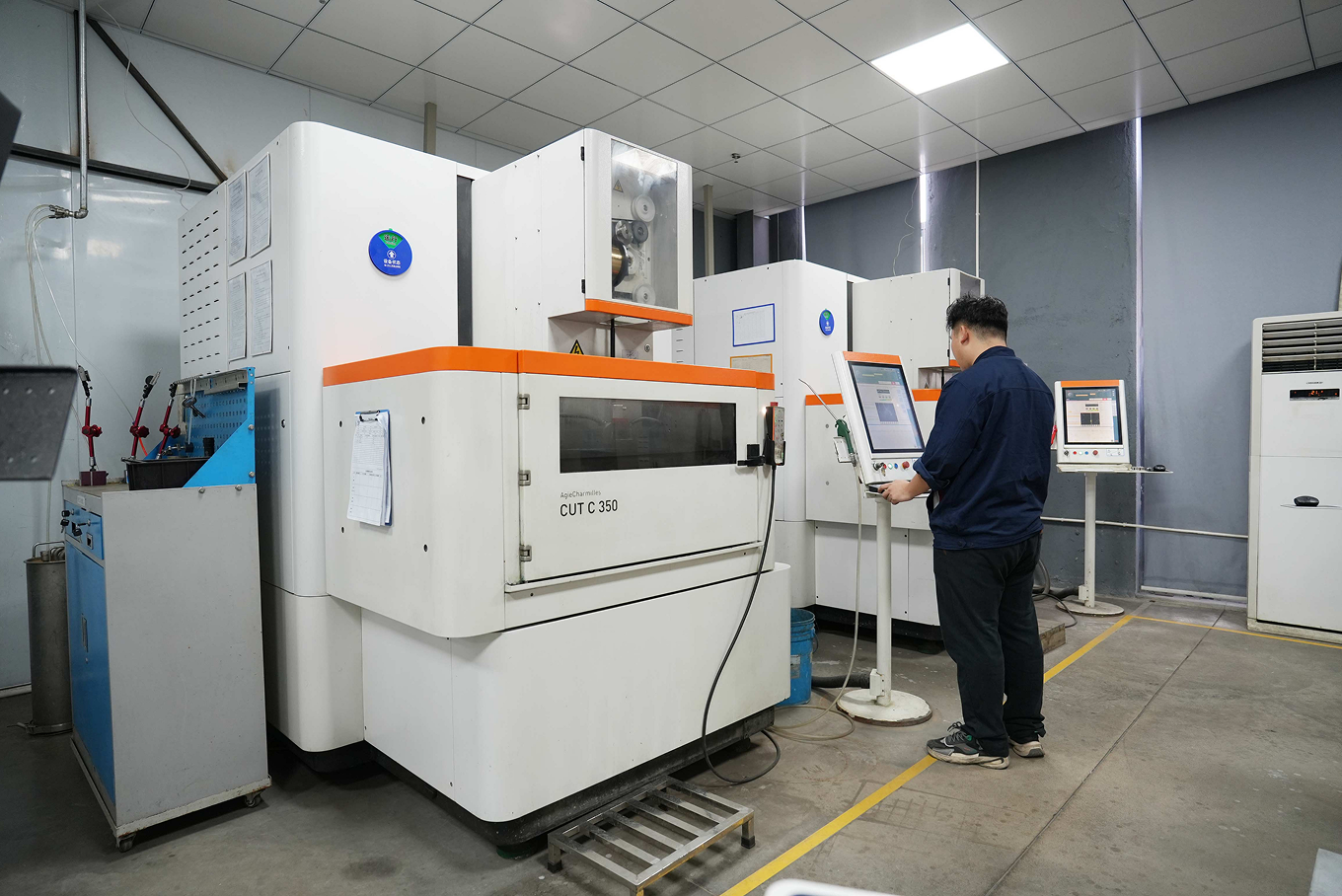

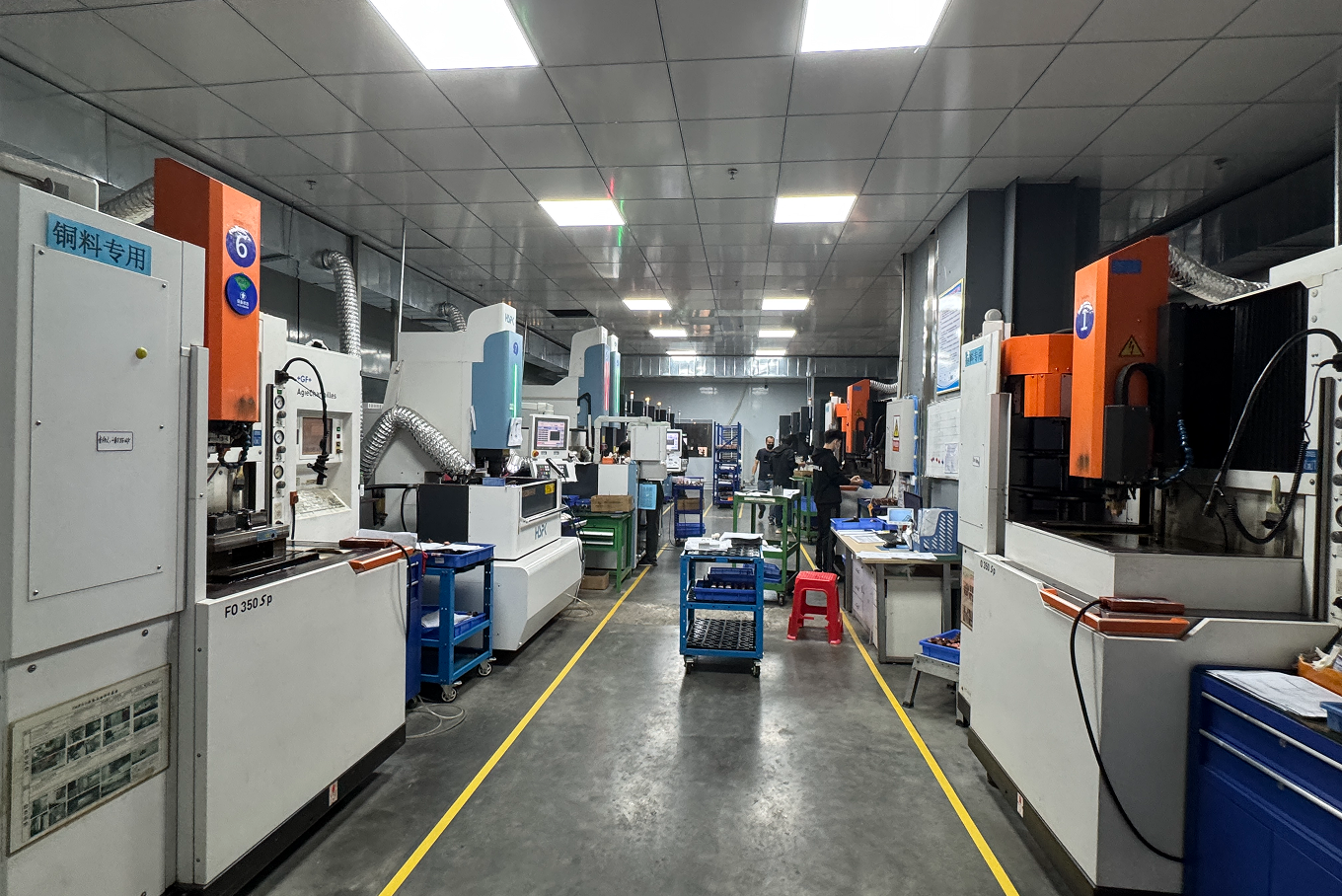

Processing Site
